AETINA AN110 with NX Module
- Braemac
- Jun 17, 2021
- 1 min read
This product is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI. The Camera Serial Interface (CSI) is based on MIPI CSI 2.0 standard specification can support up to 2xFull HD or 1x 4K camera. Suitable for NVR (Single Machine), Entry-level home robot and smart gateway.
Specifications
NX Processor
NVIDIA® Jetson Xavier™ NX processing
GPU: 384-core NVIDIA Volta™ GPU with 48 Tensor Cores
CPU: 6-core NVIDIA Carmel ARM®v8.2 64-bit
CPU 6MB L2 + 4MB L3
Memory: 8 GB 128-bit LPDDR4
Storage: 16GB eMMC 5.1
Performance: 14 TOPS (INT8) at 10W 21 TOPS (INT8) at 15W
Dimension: 69.6 x 45mm(260-pin SO-DIMM connector)
AN110 Board Dimension
87.4 x 67.4mm
I/OInterface
1x HDMI Type A
1x RJ-45 for GbE
2x USB3.2 Gen1 Type A
1x USB2.0 Micro AB
1x Micro SD
1x FPC Camera connector(15pins/MIPI CSI 2Lanes)
1x FPC Camera connector(36pins/MIPI CSI 4Lanes)
1x Front Panel
1x RS-232 / 2 x UART / 1 x I2C / 5 x GPIO / 1x SPI
1x DC-in 12V (2 Pin Euroblock)
1x eDP (12V)
1x M.2 E key2230
Operating Temperature
-25°C ~ +80°C (Board Standard temperature)
Operating Humidity
10% ~ 90%
Storage Temperature
-40°C ~ +85°C

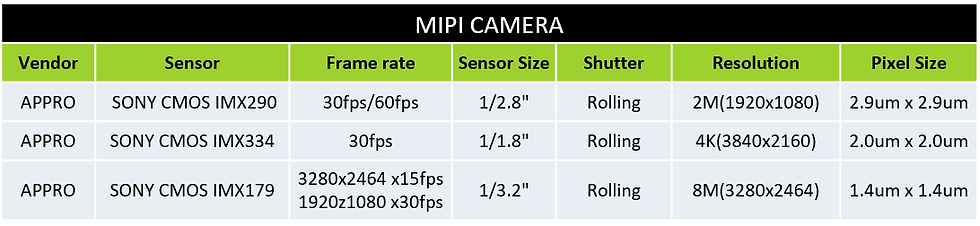

Accessories (Optional)
Block Diagram
Mechanical
AVL List
